Class: CSE 103 Subject: computer-science Date: 2026-01-20 Teacher: **Prof.

Finite Automata & Regular Expressions

Finite Automata

Def: A finite automaton $M$ is a 5 tuple(Q, $\sum$, $\delta$, $q_0$, $F$)

• Q: finite set of states
• $\sum$: finite set of alphabet symbols
• $\delta$: transition function $\delta :Q\times \sum \to Q$
  • i.e. $\delta (q,a)=r$ means you are going from state q to state r via the symbol a
• $q_0$: start state
• $F$: set of accepted states

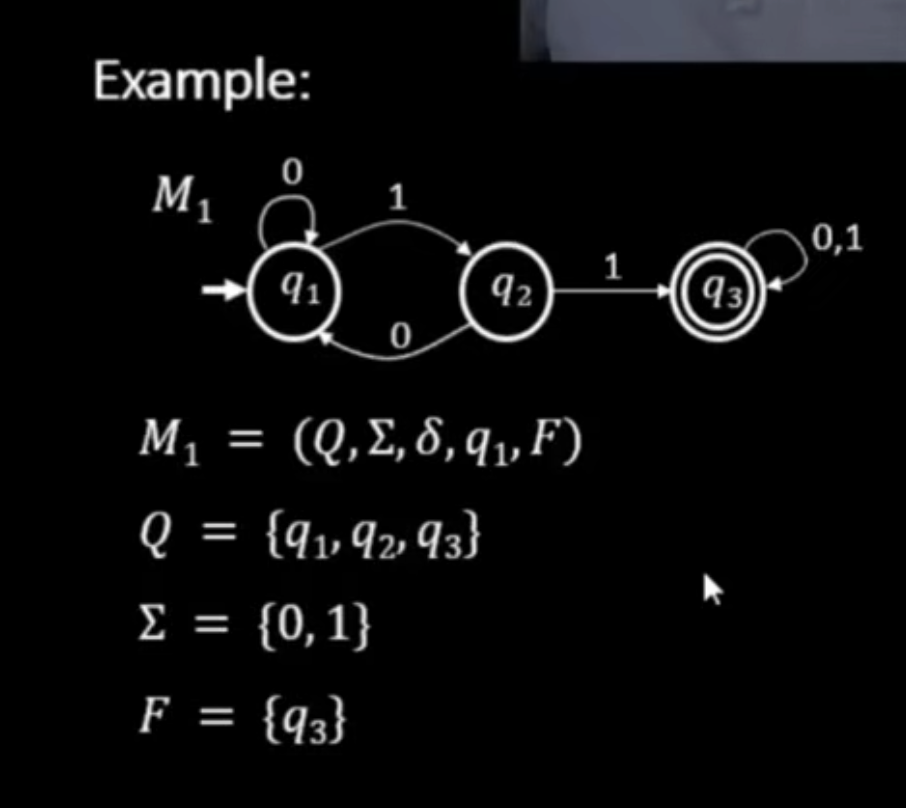

Example

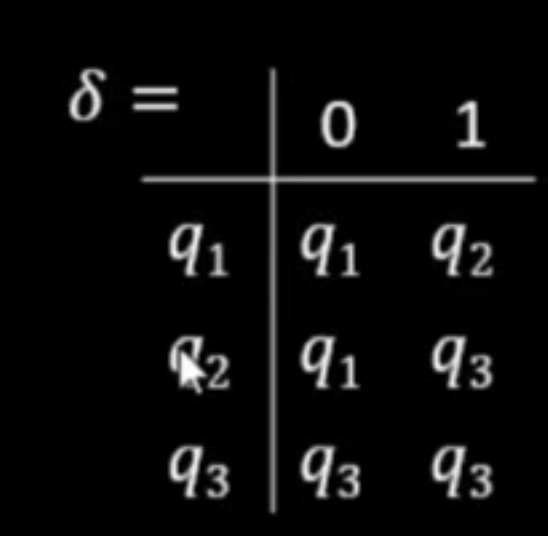

Transition function

Strings & Languages

• a string is a finite sequence of symbols $\sum$
• a language is a set of strings(finite or infinite) - in our case just finite $L$
• the empty string $\in$ is the string of length 0
• the empty language is $\varnothing$ is the set with no strings

Acceptance

Def: $M$ accepts string $w=w_1{w}_2...w_n$ each $w_i\in \sum$ if there is a sequence of states $r_0,r_1,r_2,...,r_n\in Q$ where:

• $r_0=q_0$
• $r_i=\delta (r_{i-1},w_i)$ for $1\le i\le n$ (this means that to get the state $r_i$, we have to take the transition function of the previous state $r_{i-1}$ and the current symbol $w_i$.
• $r_n\in F$

Regular Languages

Def: a language is regular if some finite automaton recognizes it.

Operations

• Regular operations: Let $A$ and $B$ be languages:
• Union: $A\cup B$ = $\{w\mid w\in A\text{ or }w\in B\}$ which means the language is in either A or B
• Concatenation: $A°B=\{xy\mid x\in A\text{ and }y\in B\}=AB$
• Star:

Closure Properties

Theorem: if $A_1,A_2$ are regular languages, so is $A_1\cup A_2$ (closure under $\cup$) Proof:

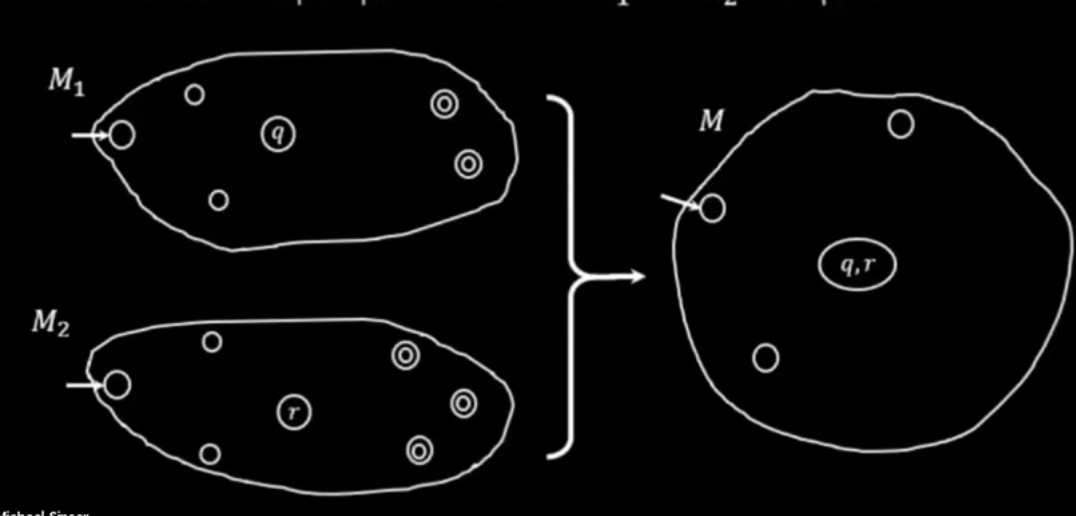

Let $M_1=(Q_1,\sum ,{\delta }_1,q_1,F_1)$ recognize $A_1$ $M_2=(Q_2,\sum ,{\delta }_2,q_2,F_2)$ Construct $M=(Q,\sum ,\delta ,q,F)$ M should accept input w if either $M_1$ or $M_2$ accept $w$.

Components of M: $Q=Q_1\times Q_2$: the set of states of $M$ is just the possible states of $M_1$ and $M_2$ $=\{(q_1,q_1)\mid Q_1\in Q_1\text{ and }{q}_2\in Q_2\}$ $q_0=(q_1,q_2)$: the starting state of $M$ is the starting state of $M_1$and $M_2$ $\delta ((q,r),a)=({\delta }_1(q_1,a_1),{\delta }_2(r,a))$: the transition function of $M$is basically the transition functions of $M_1$ and $M_2$ since $M$ tracks the states of both. so to get the ‘next state’ of $M$ we need the next states of $M_1$ and M_2 $which$ is their transition functions $F=(F_1\times Q_2)\cup (Q_1\times F_2)$: the final state of $M$ is the union of the 1. all possible states of the, final state of $M_1$ and any state from $M_2$. 2. all possible states of $M_1$ and the final state of $M_2$.

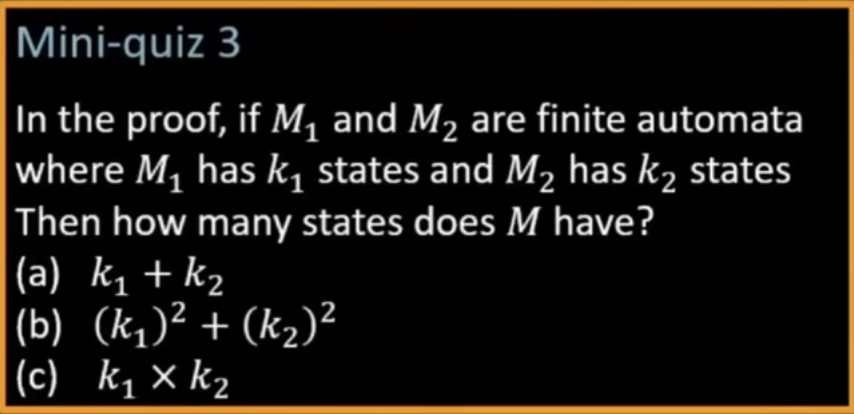

Q: riddle me this:

• the answer is C: because it’s all possible combinations of states from $M_1$ and $M_2$
