Pushdown Automata, Conversion of CFG to PDA and Reverse Conversion

CFG

Def: a context free grammar(CGF) $G$ is a 4-tuple($V,\sum ,R,S$)

• $V$: finite set of variables
• $\sum$: finite set of terminal symbols
• $R$: finite set of rules(rule form $V\to (V\cup \sum {)}^{\ast }$)
• $S$: start variable

For $u,v\in (V\cup \sum )$ write:

1. $u\Rightarrow v$ if can go from $u$ to v $with$ one substitution step in $G$
2. $u{\Rightarrow }^{\ast }v$ if can go from u to v with some number of substitution steps in G

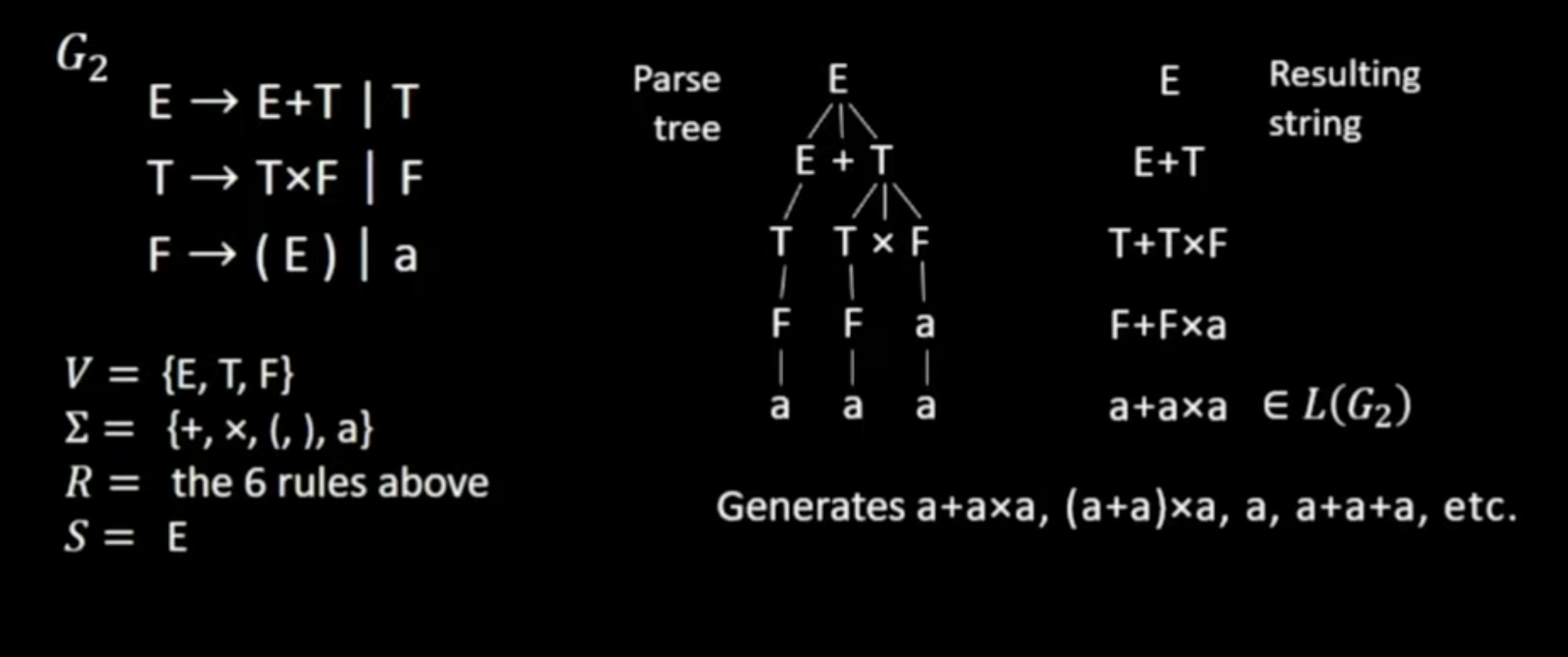

Example

Ambiguity

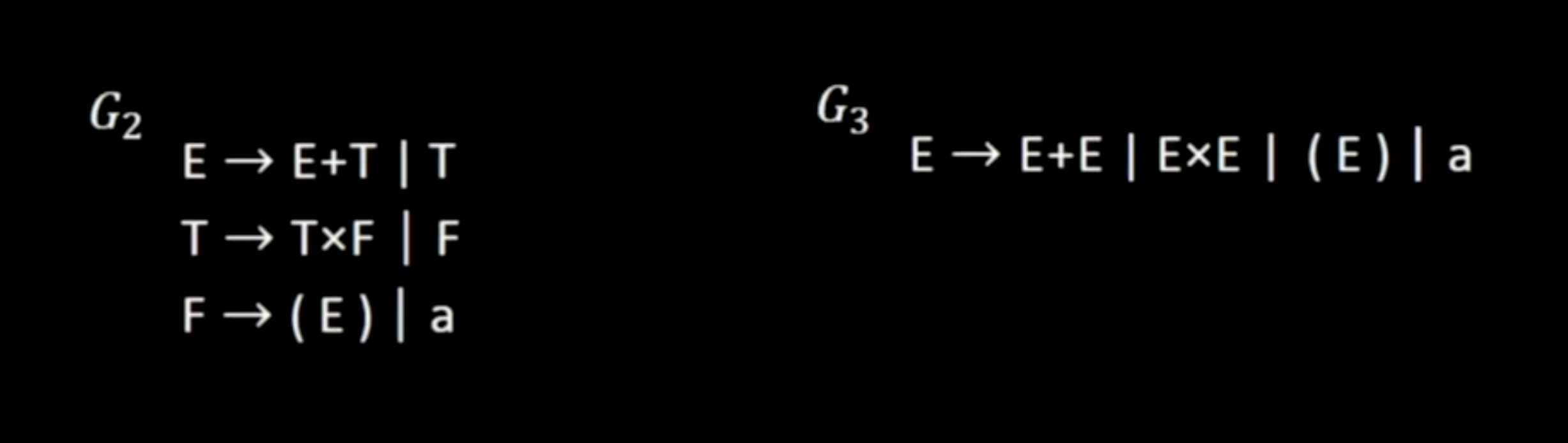

• both $G_2$ and $G_3$ recognize the same language, i.e. $L(G_2)=L(G_3)$.
• However, $G_2$ is an ambiguous CFG and $G_3$ is ambiguous

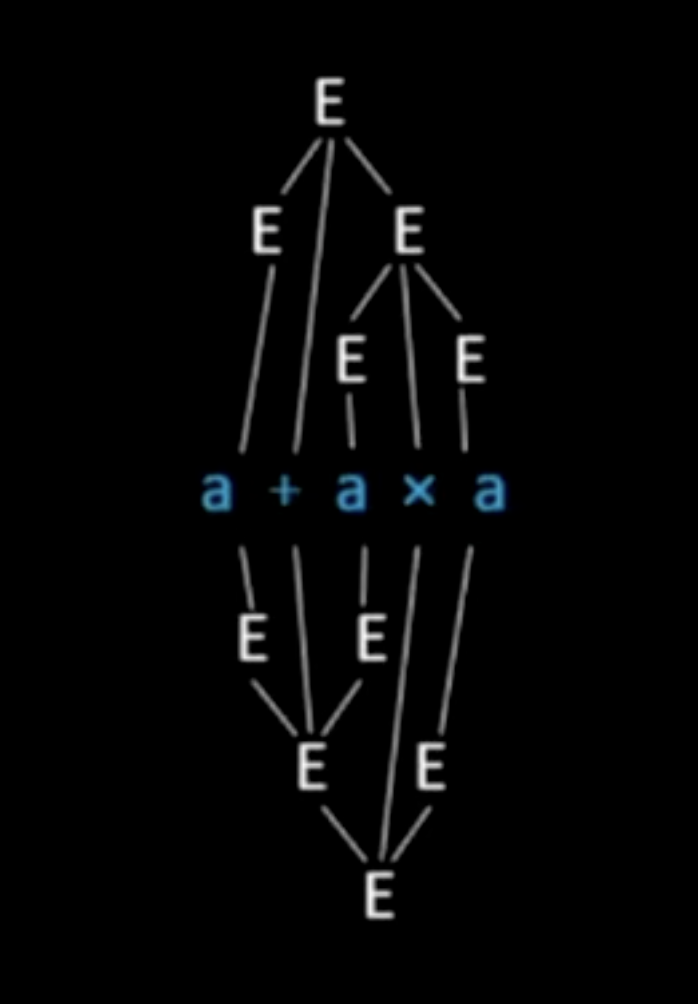

• This is what the parse tree for $G_3$ would look like:
  •
