Graphs Intro

2025-09-17 10:22

Status: adult

Tags: leetcode computer-science graphs

Graphs

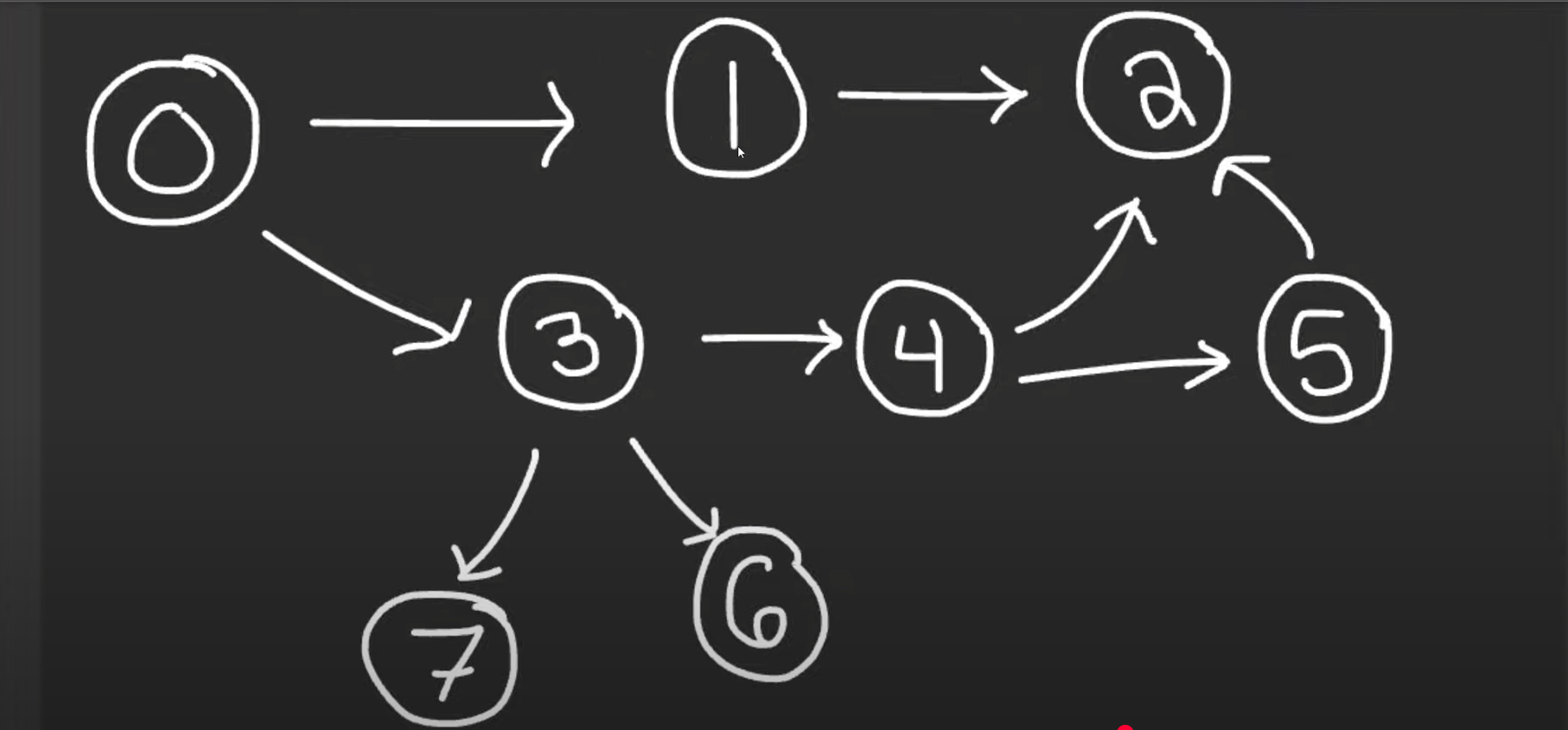

Array of Edges (Directed) [Start, End]

n = 8 # number of nodes
A = [[0, 1], [1, 2], [0, 3], [3, 4], [3, 6], [3, 7], [4, 2], [4, 5], [5, 2]]

Convert Array of Edges → Adjacency Matrix

M = []

# creates an n x n matrix
for i in range(n):
	M.append([0] * n)

for u, v in A:
	M[u][v] = 1

Convert Array of Edges → Adjacency List

from collections import defaultdict

D = defaultdict(list)

for u, v in A:
	D[u].append(v)

DFS with Recursion

source = 0

seen = set() # keeps track of nodes we've already visited
seen.add(source) # we just add the source to get things started
def dfs(node):
	print(node)
	for nei_node in D[node]:
		if nei_node not in seen:
			seen.add(nei_node)
			dfs(nei_node)

dfs(source)

Time and Space: $O(V+E)$ where $V$ is the number of nodes and $E$ is the number of edges

Iterative DFS with Stack

source = 0

seen = set() # keeps track of nodes we've already visited
seen.add(source) # we just add the source to get things started
stack = [source]

while stack:
	node = stack.pop()
	# print(node)
	for nei_node in D[node]:
		if nei_node not in seen:
			seen.add(nei_node)
			stack.append(nei_node)

Time and Space: $O(V+E)$ where $V$ is the number of nodes and $E$ is the number of edges

BFS with Queue

from collections import deque

source = 0

seen = set()
seen.add(source)
q = dequeue()
q.append(source)

while q:
	node = q.popleft()
	print(node)
	for nei_node in D[node]:
		if nei_node not in seen:
			seen.add(nei_node)
			q.append(nei_node)


References

Greg Hogg
